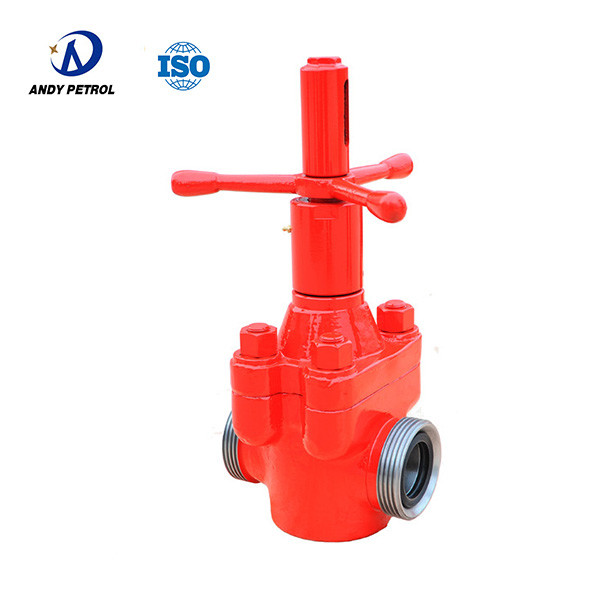

Mud Valves (Union Connection)
Technical Parameters
Working Pressure： 35~105MPa（5000psi~15000psi)
Nominal Diameter： DN50~100(2"~4")
Temperature Level： -46℃~121℃（level L-U）
Order number
Model
Nominal diameter
(mm)
Pressure
(MPa)
Overall size(mm)
Connection
L
H
A
NF1C32005T200
Z23Y-50-35-1003
50
35
205
443
70.5
FIG1003
NF1C32005T300
Z23Y-50-35-1502
50
35
212
443
70.5
FIG1502
NF1F32005T200
Z23Y-50-35-1502F
50
35
225
416
61
FIG1502
NF1F32010T200
Z23Y-50-70F
50
70
275
445
74
FIG1502
NF1C33005T200
Z23Y-75-35-1003
75
35
270
633
98
FIG1003
NF1C33005T300
Z23Y-75-35-1502
75
35
270
633
98
FIG1502
NF1F33010T200
Z23Y-75-70F
75
70
320
648
84
FIG1502
NF1C34005T100
Z23Y-100-35-1002
100
35
330
630
90
FIG1002
NF1C34005T200
Z23Y-100-35-1003
100
35
330
630
90
FIG1003
NF1C34005T300
Z23Y-100-35-1502
100
35
330
630
90
FIG1502
NF1F34010T200
Z23Y-100-70F
100
70
380
767
155
FIG1003
NF1F35005T200
Z23Y-126-35F
126
35
497
924.5
186.5
FIG1003
